Open Data Framework

Open source, full stack data framework.

Installation

pip install opendataframeworkInstalled

Create data folder

Name (required): data

mkdir data

Create data file

Name (can be any): events.csv

Types supported

int, float, str, datetime

id name value logged_at
1 noname 0.1 2024-01-01 00:00:00
cat > data/events.csv << EOFid,name,value,logged_at
1,noname,0.1,2024-01-01 00:00:00
EOF
tree.
└── data
└── events.csv

Init

Name (can be any): myproject

opendataframework init myproject --profile research./myproject/settings.json created
tree.
├── data
│ └── events.csv
└── myproject
├── data
│ └── events.csv
└── settings.json

settings.json

cat myproject/settings.json{
"opendataframework": "0.0.4",
"project": "myproject",
"profile": "research",
"layout": "research",
"entities": {
"events": {
"name": "event",
"description": "events research",
"fields": {
"id": "int",
"name": "str",
"value": "float",
"logged_at": "datetime|%Y-%m-%d %H:%M:%S"
},
"layers": {
"devcontainers": {
"R": {}
},
"utility": {
"texlive": {}
}
}
}
},
"mounts": {
"R": {
"workspaceMount": "source=${localWorkspaceFolder},target=/myproject,type=bind",
"workspaceFolder": "/myproject",
"mounts": [
"source=${localWorkspaceFolder}/../../../data,target=/myproject/data,type=bind,consistency=cached"
]
}
},
"volumes": {
"texlive": {
"../output": "/usr/src/app/mnt/output",
"../paper": "/usr/src/app/mnt/paper"
}
},
"ports": {}
}

Create

opendataframework create myprojectevents.csv moved to
./myproject/data/raw/events.csv
myproject: research layout created
./myproject/platform/devcontainers/R created
./myproject/platform/utility/texlive created
tree.
├── data
│ └── events.csv
└── myproject
├── README.md
├── code
│ ├── build
│ ├── check
│ ├── learn
│ └── share
├── data
│ ├── derived
│ └── raw
│ └── events.csv
├── expectations.py
├── libraries
├── logs
├── models
├── output
│ ├── figures
│ └── tables
├── paper
├── platform
│ ├── devcontainers
│ │ └── R
│ ├── docker-compose.yaml
│ ├── setup.sh
│ └── utility
│ └── texlive
│ ├── Dockerfile
│ └── mnt
├── requirements.txt
└── settings.json

Build platform

Command builds platform's images.

opendataframework build --project myproject

Start platform

Command starts platform's containers.

opendataframework start --project myproject

Setup platform

Command setup platform's containers.

opendataframework setup --project myproject

Install dependencies

Command creates myproject/.venv/ and installs dependencies from requirements.txt.

opendataframework install --project myproject

Build from the source

  1. This package requires poetry to be installed in your system first.

    Optional: Set virtualenvs.in-project to true by running poetry config virtualenvs.in-project true to create .venv inside project's folder.

  2. Clone opendataframework.
  3. Install opendataframework in editable mode with dependencies by running: poetry install.

Concepts

Layout

Predefined project layout and scripts to get up & running.

Research

.
├── code
│   ├── build
│   ├── check
│   ├── learn
│   └── share
├── data
│   ├── derived
│   └── raw
├── libraries
├── logs
├── models
├── output
│   ├── figures
│   └── tables
└── paper

Custom

No Layout (default)

Platform

Data platform. Set of pre-configured, open source, containerized tools used in project, hosted locally or deployed.

Layers & Components

Layers of data platform with containerized components.

analytics
superset
api
fastapi
devcontainers
python
R
storage
postgresql
utility
nginx
TeX Live

Profile

Pre-configured layout & data platform.

Research

Configuration for Research project.

Custom

Manual configuration via CLI.

Examples

Inference API

We need 3 files in order to make predictions via API

  1. data file (wines.csv) is needed to prepare schema for Inference API
  2. model file (model.pkl) is needed to make a prediction via Inference API
  3. requirements.txt is needed to install extra dependencies needed for our model (for example scikit-learn)

Create data folder

Name (required): data

mkdir datatree.
└── data

Create data file

Assume, we have a model and it was trained and fit using the dataset

quality is a column we want to predict

Now, lets create a data file

  • data file can be used for prediction
  • inference endpoint will be generated based on data file schema

Name (can be any): wines.csv

File should contain column names used to fit the model

Column used to train the model, but not to fit the model (quality), will be predicted by inference endpoint

Note: column types supported are int, float, str, datetime

cat > data/wines.csv << EOF"fixed acidity","volatile acidity","citric acid","residual sugar","chlorides","free sulfur dioxide","total sulfur dioxide","density","pH","sulphates","alcohol"
7.1,0.33,0.18,6.3,0.094,27,166,0.99474,2.9,0.49,9.5
EOF
tree.
└── data
└── wines.csv

wines.csv

fixed_acidity volatile_acidity citric_acid residual_sugar chlorides free_sulfur_dioxide density ph sulphates alcohol
7.1 0.33 0.5 6.3 0.094 27 166 0.99474 0.49 9.5

Create models folder

Name (required): models Model folder (must correspond to the data file name): wines

mkdir -p models/winestree.
├── data
│ └── wines.csv
└── models
└── wines

Create model file

Add a model file into correspondent folder.

Name (required): model.pkl

tree.
├── data
│ └── wines.csv
└── models
└── wines
└── model.pkl

Add dependencies

Dependencies are the packages required for our model to be able to work.

Assume our model requires scikit-learn==1.5.2

$ cat > models/wines/requirements.txt << EOF
scikit-learn==1.5.2
EOF

$ tree
.
├── data
│   └── wines.csv
└── models
    └── wines
        ├── model.pkl
        └── requirements.txt

Init project

Name (can be any): myproject

opendataframework init myproject

Now, lets do manual configuration of myproject.

The only components we need to select are:

inference (required)

nginx (optional) - to make a simple static UI for our app where we can easily find the link to Inference API

- Layout (custom): custom
- Name (wine): wine
- Plural (wines): wines
- Description: wine quality prediction

wine | analytics
superset: n

wine | devcontainers
python: n
R: n

wine | api
api-postgres: n
inference: y

wine | storage
postgres: n

wine | utility
nginx: y
texlive: n

What happened?

  1. Required folders were copied to myproject folder

  2. Configuration file myproject/setting.json was created

tree.
├── data
│ └── wines.csv
├── models
│ └── wines
│ ├── model.pkl
│ └── requirements.txt
└── myproject
├── data
│ └── wines.csv
├── models
│ └── wines
│ ├── model.pkl
│ └── requirements.txt
└── settings.json

Create project

Since we are going to use defult cofiguration defined in myproject/setting.json lets go ahead and create the project.

opendataframework create myproject

Now, lets switch to myproject folder and look what is inside.

cd myprojecttree.
├── README.md
├── data
│ └── wines.csv
├── docs
│ ├── index.md
│ └── stylesheets
│ └── extra.css
├── expectations.py
├── ingest.py
├── mkdocs.yml
├── models
│ └── wines
│ ├── model.pkl
│ └── requirements.txt
├── platform
│ ├── api
│ │ └── inference
│ │ └── wines
│ │ ├── Dockerfile
│ │ ├── app
│ │ │ ├── __init__.py
│ │ │ ├── config.py
│ │ │ ├── crud.py
│ │ │ ├── dependencies.py
│ │ │ ├── main.py
│ │ │ ├── model.pkl
│ │ │ ├── models.py
│ │ │ └── router.py
│ │ └── pyproject.toml
│ ├── docker-compose.yaml
│ ├── setup.sh
│ └── utility
│ └── nginx
│ ├── Dockerfile
│ ├── nginx.conf
│ └── static
│ ├── images
│ │ └── logo.svg
│ └── index.html
├── requirements.txt
├── settings.json
└── tests
├── __init__.py
└── test_example.py

Build platform

Inside myproject run

opendataframework build

Start platform

Inside myproject run

opendataframework start

Check status

Inside myproject run

opendataframework status
NAME IMAGE COMMAND SERVICE CREATED STATUS PORTS
myproject_nginx myproject:nginx "/docker-entrypoint.…" myproject_nginx 28 seconds ago Up 26 seconds 80/tcp, 0.0.0.0:80->8080/tcp
myproject_wines myproject:wines "uvicorn app.main:ap…" myproject_wines 30 seconds ago Up 28 seconds 0.0.0.0:8000->8000/tcp

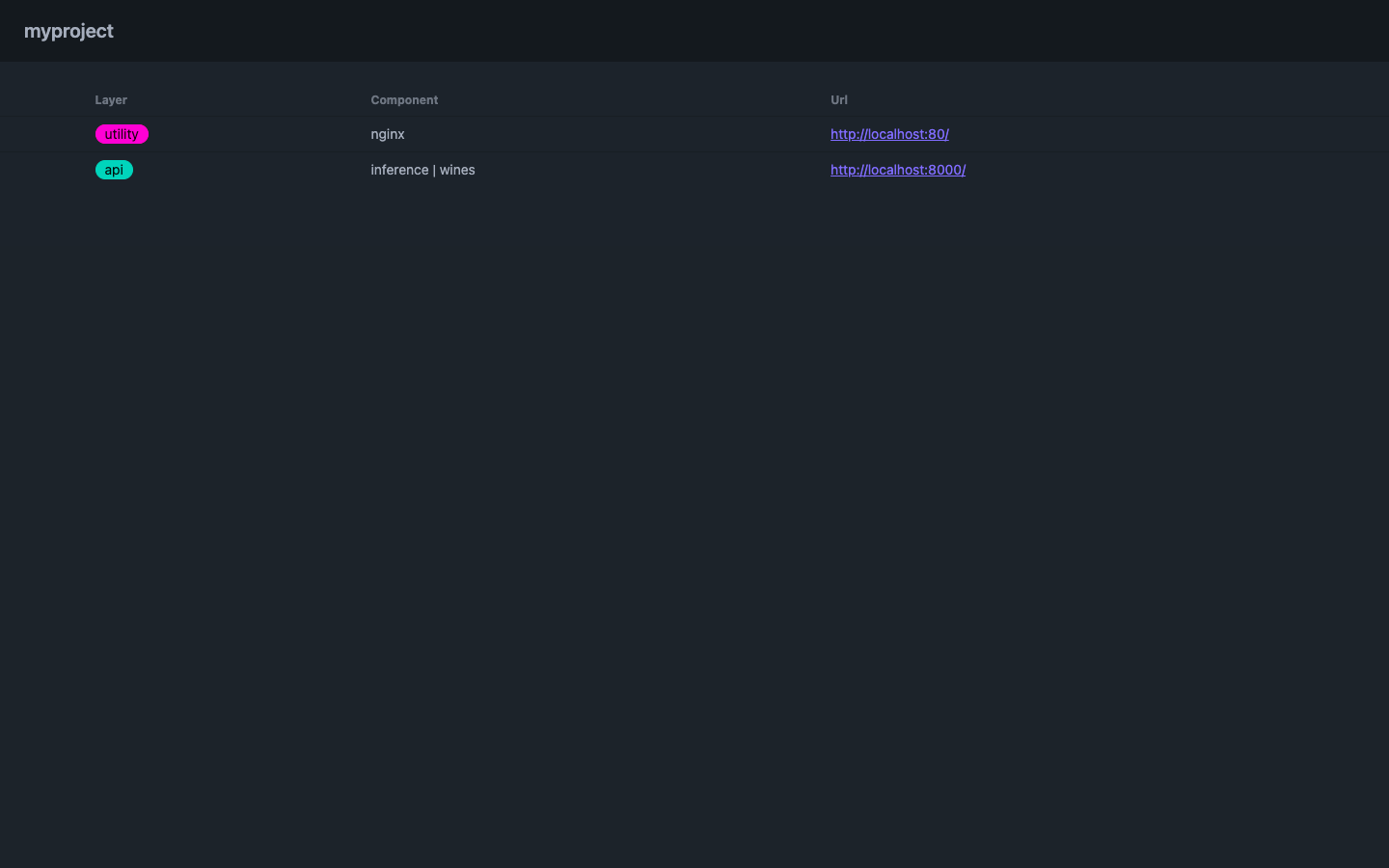

myproject_nginx

Simple Frontend Server, serves list of urls registred in myproject

myproject_nginx

myproject_wines

Swagger UI with endpoints

myproject_nginx

Make predictions

Lets make a prediction via API

curl -X 'POST' \ 'http://localhost:8000/api/v1/inference/' \ -H 'accept: application/json' \ -H 'Content-Type: application/json' \ -d '{ "fixed_acidity": 7.1,
"volatile_acidity": 0.33,
"citric_acid": 0.18,
"residual_sugar": 6.3,
"chlorides": 0.094,
"free_sulfur_dioxide": 27,
"total_sulfur_dioxide": 166,
"density": 0.99474,
"ph": 2.9,
"sulphates": 0.49,
"alcohol": 9.5
}'

Response: 5.591486165052446 (quality column prediction)
